Project: Specification:
Voltage 1.8V
Temperature -40℃ — 85℃ / 105℃
CPU Dual core,1GHz,L2 512KB
Package BGA 19x19
DDR DDR3/3L/4 2133Mhz
Power waste <3W

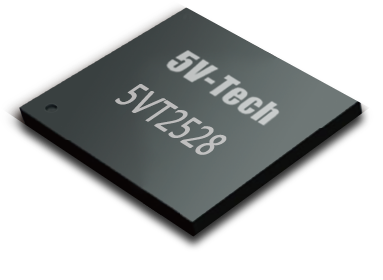

5VT2528

Load balancing between dual cores, deep optimization of data paths, and deep optimization of SoC processing capabilities. In the Spirent C50 testing scenario of mobile centralized procurement testing, the large byte performance can reach up to 2.1G (downstream), basically reaching the theoretical limit of empty ports. The small byte performance is significantly better than that of competitors! Fully self-developed Easy Mesh, compliant with the WFA Mutli-AP v2.0 Specification, supports traditional wireless and Ethernet backhaul, as well as fiber optic backhaul in FTTR networking technology. Hardware acceleration is supported on both WiFi TX/RX bidirectional channels. Compared to the solution without hardware acceleration, CPU loading can be reduced by about 70%, freeing up more CPU resources to assist intelligent gateway services.

type Part Number CPU Voltage DDR Temp. Range PKG Type Datasheet

GPON/EPON/XGPON

5VT2528

Dual core 1GHz

1.8V

DDR3/3L/4

-40℃~85℃

BGA 19x19
